NEW ATLAS COPCO QAS1500 MD DIESEL TIER 4 GENERATOR

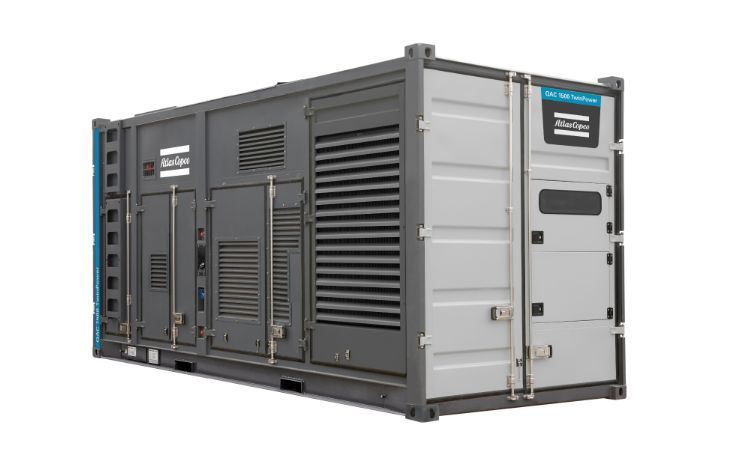

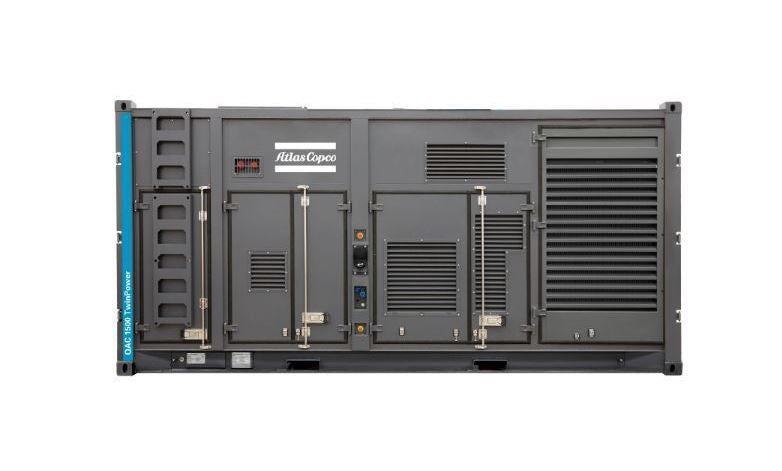

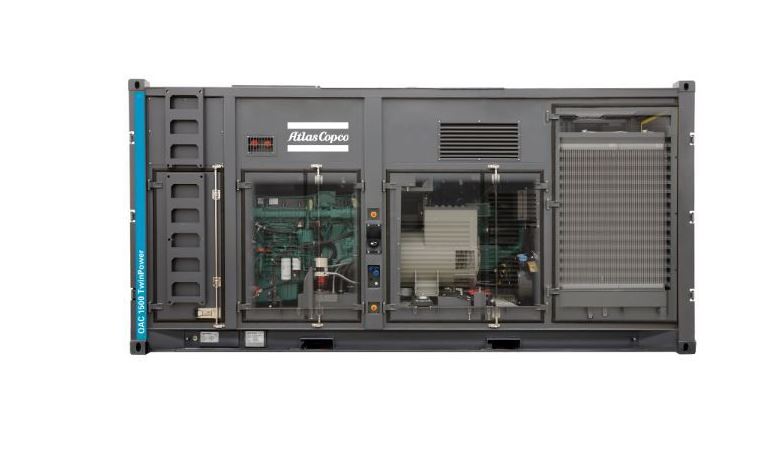

The Atlas Copco QAC 1500 TwinPower generator is a 20-foot containerized generator providing over 1 Megawatt of prime power!
The two 725kVA generators inside make it perfect for applications that have variable power needs, especially in the Industrial Power Plant (IPP), Events, Oil & Gas and Mining industries. It comes switchable for 50/60 Hz applications running the generators independently.
|
Manufacturer |
Volvo |
|
|
Model |
2 x TWD 1683 GE |
|
|
US EPA Tier |
T4F |
|
Rated speed |
rpm |
1500 |
|
Rated power factor (lagging) |
0.8 |
|
|
Rated Prime Power, PRP |
kVA |
1365 |
|
kW |
1092 |
|
|
Limited Time Power, ESP (Stand-by) |
kVA |
1447 |
|
Rated voltage (3ph. line to line) |
V |
400 |
|
Rated voltage (1ph. line to neutral) |
V |
230 |
|
Rated current 3ph. (PRP) |
A |
1970 |
|
Rated current 3ph. (ESP) |
A |
2059 |
|
Maximum sound power level (LWA) |
dB(A) |
103 |
|
Maximum sound pressure level (LPA) at 7 m |
dB(A) |
76 |
|
Coupling engine/alternator |
Direct |
|
|
Fuel Autonomy at 75% load |
h |
8.4 |
|
Fuel Tank Capacity |
gal(l) |
2 x 209 ( 2x793) |
|
DEF Tank |
gal(l) |
2 x 18.5 (2x70) |
|
Single step load acceptance (within G2, acc. ISO 8528-5:1993) |
% |
50 |
